|Color:||Red Or Customized||HS Code:||846229|

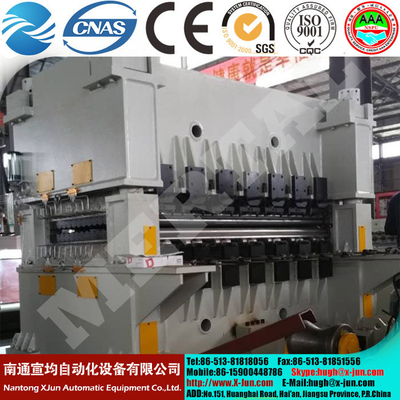

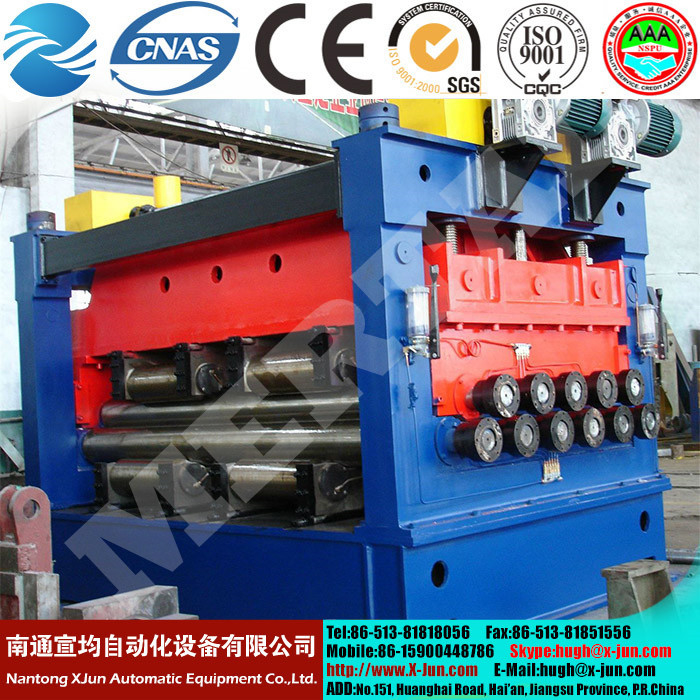

MCLW43 PLATE LEVLING MACHINE
MCLW43-series palte leveling macine is for roll metal sheet leveling special equipment,often by power,host,and electeical controls.
MCLW43-series plate leveling machine is dedicated to the cold metal sheet,take advantage of a number of roller works,so that the sheet metal works between the upper and lowerrollers repeated,deformation and relief stress,changing avariety of original curvature gradually becomes single curvature (bauschinger effect) to achieve the objective of the plain. As the precision request,in the upper and lower roller lateral,set rigid support roller (wheel),constitute a quadruple-group or six-group roll structure.

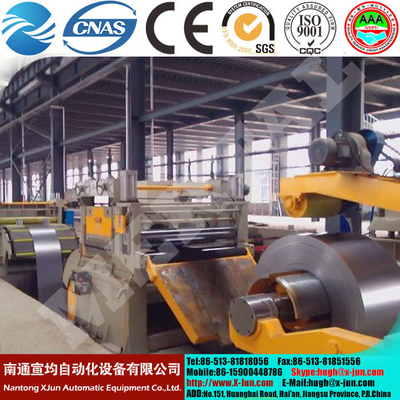

When metal through the leveling machine ,can significantly improve their flat state,improving the quality of the worfkpiece.Independently,for single sheets of plain；also can configure open-book,cited material,cutting,and stracking behind configuration and online agencies,among others,by controlling the system into a complete production line.
|Technical parameters for Leveling machine|
|Model||Max Leveling thickness(mm)||Max Leveling width(mm)||Min Leveling thicknessr(mm)||Yielding Linit(Mpa)||Main motor power(Kw)|
