MCLW11SNC-80*3000 Special rolling machine of boiler ,plate bending machine

China MCLW11SNC-80*3000 Special rolling machine of boiler ,plate bending machine supplier
MCLW11SNC-80*3000 Special rolling machine of boiler ,plate bending machine supplier MCLW11SNC-80*3000 Special rolling machine of boiler ,plate bending machine supplier MCLW11SNC-80*3000 Special rolling machine of boiler ,plate bending machine supplier

Large Image :  MCLW11SNC-80*3000 Special rolling machine of boiler ,plate bending machine

Product Details:

Place of Origin: JiangSu
Brand Name: China Mertal
Certification: ISO and CE
Model Number: MCLW

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: $5000-$50000
Packaging Details: Customized or naked
Delivery Time: It's up to machine's capacity
Payment Terms: T/T
Supply Ability: 20 sets/month
Contact Now
Detailed Product Description

Features

1. the structure of the machine is symmtrical 3-roll, two lower rolls are symmetrical central location, so it is convenient for machine vertical movement.

2. the machine is started bu manually under pressure, and then the two rollers rotates through the output gear reducer with roller gear meshing.

3. the machine is cheaper than the traditional one, and the structure is simple and easy for operation.

4. the machine is cost-effective, and has long performance life.



--MCLW11STNC- Structural characteristics of equipment


1), rolling barrel straight and high, set on a drum roll, with roller adjustment, from sheets to heavy plate rolling this range can be a high degree of linear products, to ensure that the next process is carried out smoothly welding to ensure the quality of welding.
2) using the rear bending process, eliminate curved front post horn is produced, products roundness.
3), the material ends direct pressurizing the pre-bend very easily and effectively control the shape of the remaining straight edge.

★ The device is equipped with a lubricating device. Lubrication system for each movable joint member has a centralized lubrication system lubrication system is reliable and can work at ambient temperature (45 ° or less), high humidity (95%).
★ integrated racks, base made of high quality steel Q235B welded components, have sufficient strength and rigidity.
★ work rolls using two approaches: first quenching strength of the work rolls HB260-300; then the work rolls quenching hardness HRC50-55, the work roll is detected using two standard testing, the work roll is 42CrMo forging blank.
★ equipped with electronic synchronization system when moving up and down on a roll, synchronous balance compared, and no end of work balance is not prone to the wrong side, easy operation, high volume manufactures precision.
★ equipment control system uses the remote service monitoring system. The user can use equipment and production facilities and services twenty-four hours tracking, promptly address and resolve equipment problems to ensure uninterrupted device is working properly. (Requires optional)

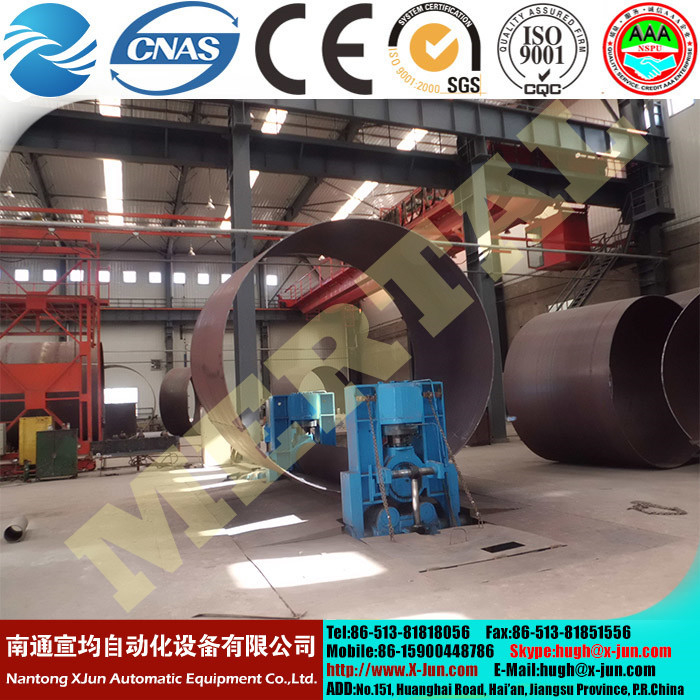

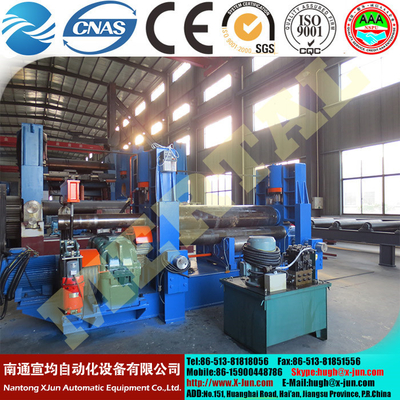

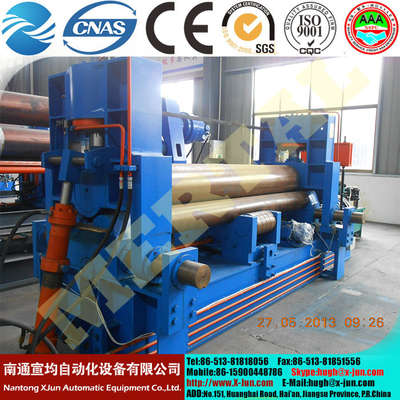

MCLW11SNC-80*3000 Special rolling machine of boiler ,plate bending machineMCLW11SNC-80*3000 Special rolling machine of boiler ,plate bending machineMCLW11SNC-80*3000 Special rolling machine of boiler ,plate bending machine

MCLW11SNC-80*3000 Special rolling machine of boiler ,plate bending machine

MCLW11S upper roller universal plate rolling machine technical parameters
Model Max Pre-bending thickness(mm) Max bending thickness(mm) Diameter of the upper roller(mm) Max plate width(mm) Main motor power(kw)
MCLW11S-8*1500 6 8 175 1500 3
MCLW11S-12*1500 10 12 245 1500 4
MCLW11S-10*2000 8 10 235 2000 4
MCLW11S-12*2000 10 12 250 2000 5.5
MCLW11S-16*2000 12 16 255 2000 7.5
MCLW11S-20*2000 16 20 260 2000 11
MCLW11S-10*2500 8 10 255 2500 5.5
MCLW11S-12*2500 10 12 270 2500 7.5
MCLW11S-16*2500 12 16 300 2500 11
MCLW11S-20*2500 16 20 330 2500 15
MCLW11S-25*2500 20 25 380 2500 18.5
MCLW11S-30*2500 25 30 410 2500 22
MCLW11S-35*2500 30 35 460 2500 30
MCLW11S-40*2500 35 40 500 2500 37
MCLW11S-25*3000 20 25 430 3000 22
MCLW11S-30*3000 25 30 450 3000 30
MCLW11S-35*3000 30 35 500 3000 37
MCLW11S-40*3000 35 40 540 3000 45
MCLW11S-50*3000 40 50 580 3000 55
MCLW11S-60*3000 50 60 650 3000 55
MCLW11S-70*3000 60 70 710 3000 75
MCLW11S-80*3000 70 80 760 3000 75
MCLW11S-100*3000 90 100 820 3000 90
MCLW11S-120*3000 100 120 860 3000 110
MCLW11S-125*3000 105 125 880 3000 110
MCLW11S-50*3500 40 50 620 3500 55
MCLW11S-60*3500 50 60 680 3500 75
MCLW11S-70*3500 60 70 740 3500 75
MCLW11S-80*3500 70 80 820 3500 75
MCLW11S-100*3500 90 100 860 3500 90
MCLW11S-60*4000 50 60 780 4000 75
MCLW11S-80*4000 70 80 860 4000 90
MCLW11S-100*4000 90 100 900 4000 90
MCLW11S-120*4000 100 120 990 4000 110
MCLW11S-160*4000 130 160 1260 4000 2*90
MCLW11S-200*4000 170 200 1480 4000 2*132
