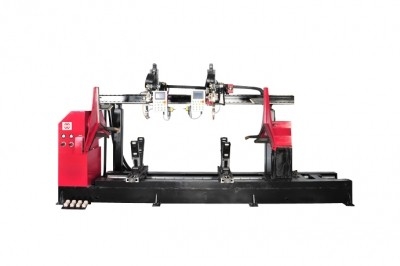

HWH Circumferential Seamer(φ<300mm)
A perfect welding system for circumferential seam welding
High precision and convenient clamping
Brief
It suits for welding hydro-cylindera with diameter range of φ50～300mm and a maximum length is 3000mm. The fixture is composed of main spindle box, lathe bed, pneumatic support, pneumatic tailstock, trolley, motor-slider, protection cover, controller, MIG torch system and automatic heating system. The work piece is clamped by adjustable chuck on the headstock, and then the tailstock clamps the work piece by pneumatic device; When necessary, it allows using pneumatic support in the middle of work piece.
Features
Suitable for barrel and hydro-cylinder circumferential seam welding;
According to requirement, choose TIG, MIG/MAG welding process, and choose single torch or double torches;
Suitable for various materials, such as carbon steel, stainless steel, titanium alloy and aluminum alloy;
Suitable for pneumatic loading of material and hydraulic pushing of fixture;
Specification
| Item | Parameters |
| Welding Diameter | φ50～φ300mm |
| Maximum Welding Length | 3000mm |
| Rotation Speed | 0.1～2rpm |
| Rotation Motor | 0.55kw,1500rpm |
| Clutch Type | Manual |
| Movement Distance of Cylinder for Pneumatic Support | 270mm |
| Diameter of Cylinder for Pneumatic Support | φ160mm |
| Movement Distance of Tailstock Sylinder | 250mm |
| Diameter of Tailstock Cylinder | φ160mm |
| Maximum Load of Pneumatic Support | 3000kg(2 supports) |
| Manual Vertical Distance of MIG Torch slider | 300mm |
| Movement Distance of MIG Torch AVC Motor Slider | 60mm |
| Trolley Move type | Manual |
| Weight | 2300kg |
| Dimension (LxWxH) | 4700mm×1000mm×180mm |
