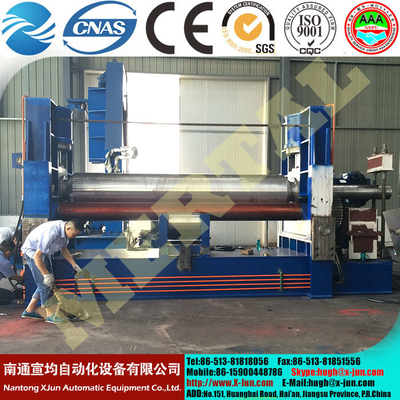

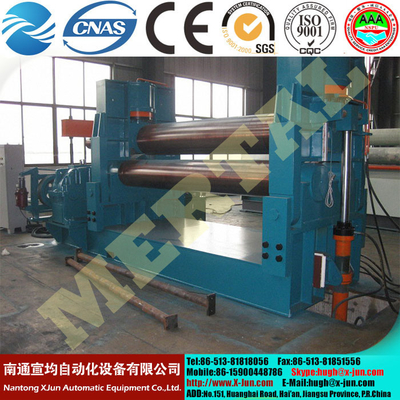

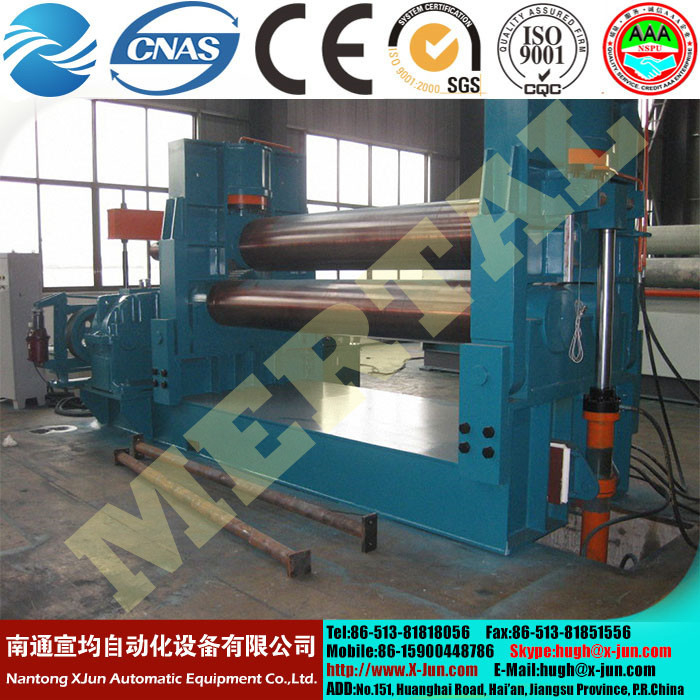

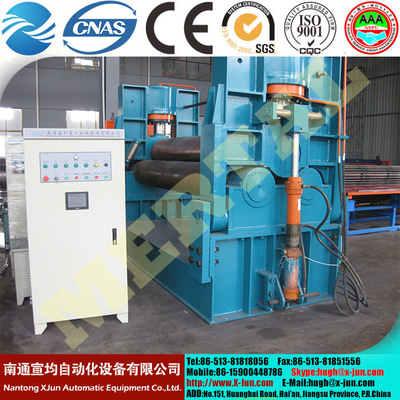

MCLW11-25X2500 Mechanical three roller plate bending machine,, plate rolling machine export

MCLW11-25X2500 Mechanical three roller plate bending machine,, plate rolling machine export

China MCLW11-25X2500 Mechanical three roller plate bending machine,, plate rolling machine export supplier
MCLW11-25X2500 Mechanical three roller plate bending machine,, plate rolling machine export supplier MCLW11-25X2500 Mechanical three roller plate bending machine,, plate rolling machine export supplier MCLW11-25X2500 Mechanical three roller plate bending machine,, plate rolling machine export supplier

Large Image :  MCLW11-25X2500 Mechanical three roller plate bending machine,, plate rolling machine export

Product Details:

Place of Origin: JiangSu
Brand Name: China Mertal
Certification: ISO and CE
Model Number: MCLW

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: $5000-$50000
Packaging Details: Customized or naked
Delivery Time: It's up to machine's capacity
Payment Terms: T/T
Supply Ability: 20 sets/month
Contact Now
Detailed Product Description
Condition: New Material: Carbon Steel
Brand: Mertal Color: Red Blue Or Customized

Three Roller Plate Rolling Machine Standard features:


1. High-precision end pre-bending
2.NC control and improve production efficiency
3. products superior accuracy
4. The overall structure, the foundation is simple, easy to move
5. Job security
6. Rich bending shape


--MCLW11STNC- Structural characteristics of equipment


1), rolling barrel straight and high, set on a drum roll, with roller adjustment, from sheets to heavy plate rolling this range can be a high degree of linear products, to ensure that the next process is carried out smoothly welding to ensure the quality of welding.
2) using the rear bending process, eliminate curved front post horn is produced, products roundness.
3), the material ends direct pressurizing the pre-bend very easily and effectively control the shape of the remaining straight edge.

★ The device is equipped with a lubricating device. Lubrication system for each movable joint member has a centralized lubrication system lubrication system is reliable and can work at ambient temperature (45 ° or less), high humidity (95%).
★ integrated racks, base made of high quality steel Q235B welded components, have sufficient strength and rigidity.
★ work rolls using two approaches: first quenching strength of the work rolls HB260-300; then the work rolls quenching hardness HRC50-55, the work roll is detected using two standard testing, the work roll is 42CrMo forging blank.
★ equipped with electronic synchronization system when moving up and down on a roll, synchronous balance compared, and no end of work balance is not prone to the wrong side, easy operation, high volume manufactures precision.

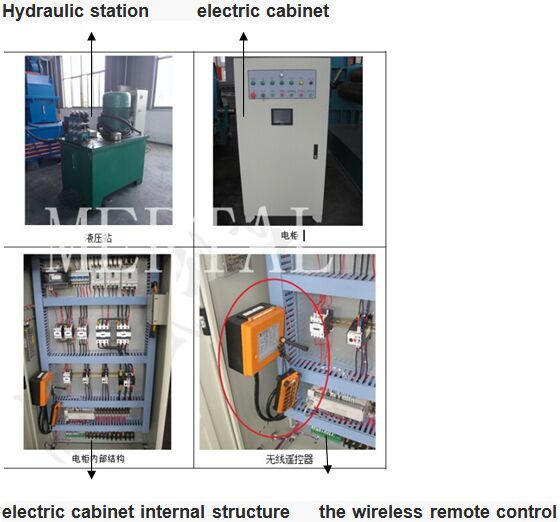

★ equipment control system uses the remote service monitoring system. The user can use equipment and production facilities and services twenty-four hours tracking, promptly address and resolve equipment problems to ensure uninterrupted device is working properly. (Requires optional)

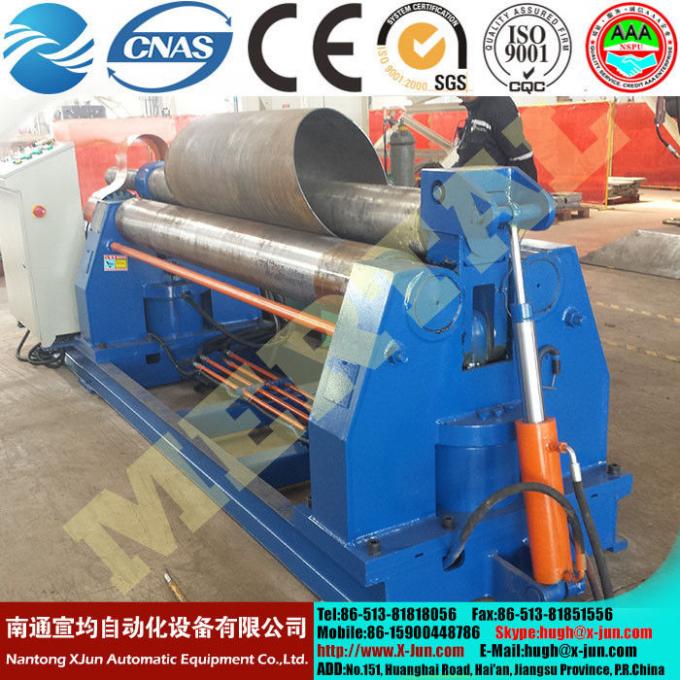

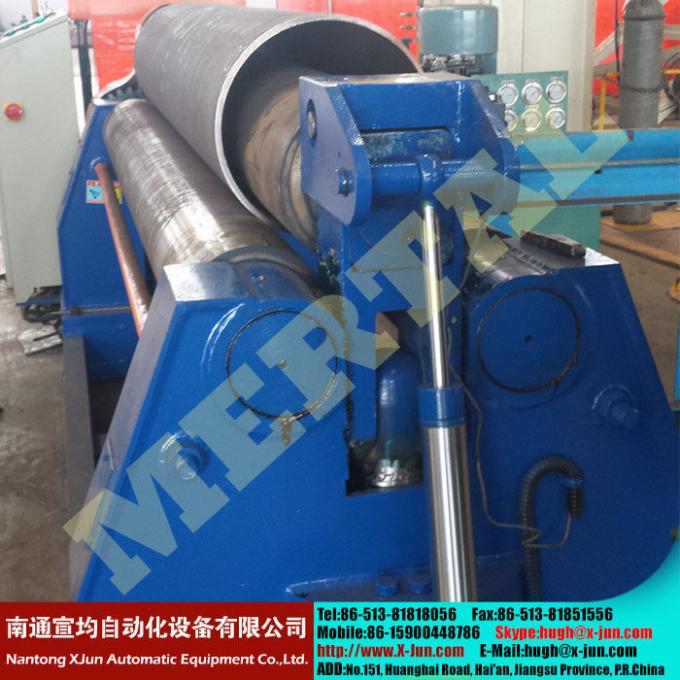

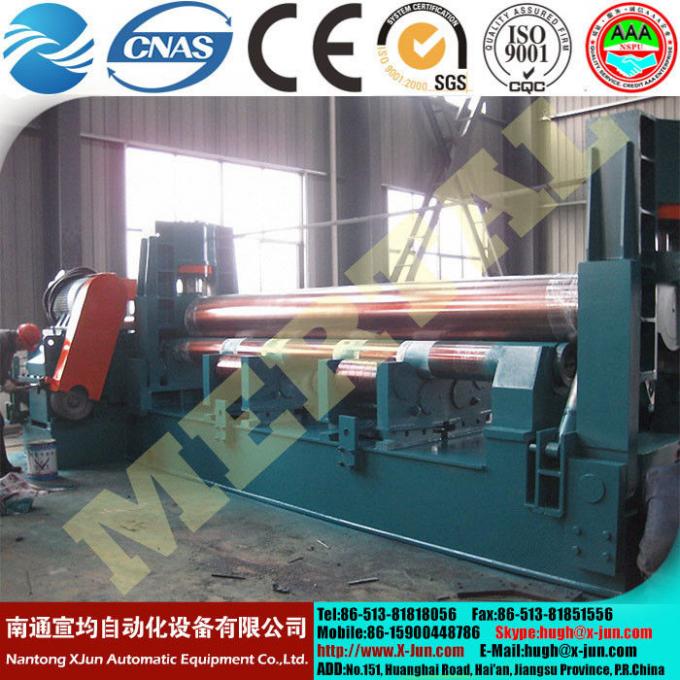

MCLW11-25X2500 Mechanical three roller plate bending machine,, plate rolling machine exportMCLW11-25X2500 Mechanical three roller plate bending machine,, plate rolling machine exportMCLW11-25X2500 Mechanical three roller plate bending machine,, plate rolling machine export

MCLW11-25X2500 Mechanical three roller plate bending machine,, plate rolling machine export


MCLW11 Hydraulic symmetric three roller plate bending machine technical parameters
Model Max bending thickness(mm) Max plate width(mm) Yielding limit of sheet metal (Mpa) Rolling speed (m/min) MIN. DIAMETER 1,5 TURNS OF TOP DIAMETER(mm) Diameter of upper roller (mm) Diameter of lower roller(mm) Central distance between two lower rollers(mm) Main motor power(kw) Hydraulic motor power(kw)
MCLW11-30x2000 30 2000 245 4 1200 360 290 480 22 7.5
MCLW11-25x2500 25 2500 245 4 1200 370 300 480 22 7.5
MCLW11-30x2500 30 2500 245 4 1200 420 360 550 30 11
MCLW11-20x3000 25 3000 245 4 1200 430 370 550 30 11
MCLW11-30x3000 30 3000 245 4 1200 450 390 600 30 11
MCLW11-40x2500 40 2500 245 3.5 1400 500 400 600 37 15
MCLW11-40x3000 40 3000 245 3.5 1600 540 440 600 45 18.5
MCLW11-50x3000 50 3000 245 3.5 2000 580 480 750 55 22
MCLW11-60x3000 60 3000 245 3.5 2400 660 560 800 75 30
MCLW11-70x3000 70 3000 245 3.5 2800 710 620 850 90 37
MCLW11-80x3000 80 3000 245 3.5 3200 770 680 900 90 37
MCLW11-90x3000 90 3000 245 3.5 3600 820 730 950 110 45
MCLW11-100x3000 100 3000 245 3.5 4000 860 770 1000 110 45
MCLW11-110x3000 110 3000 245 3.5 4400 900 810 1080 132 55
MCLW11-120x3000 120 3000 245 3.5 4800 950 860 1160 132 55
