Bent pipe- Flange automatic welding system

Bent pipe- Flange automatic welding system

China Bent pipe- Flange automatic welding system supplier
Bent pipe- Flange automatic welding system supplier Bent pipe- Flange automatic welding system supplier Bent pipe- Flange automatic welding system supplier

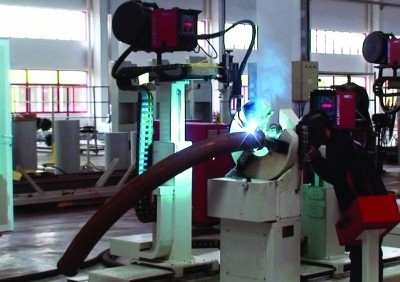

Large Image :  Bent pipe- Flange automatic welding system

Product Details:

Place of Origin: JiangSu
Brand Name: China Mertal
Certification: ISO and CE
Model Number: MCLW

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: $5000-$50000
Packaging Details: Customized or naked
Delivery Time: It's up to machine's capacity
Payment Terms: T/T
Supply Ability: 20 sets/month
Contact Now
Detailed Product Description
Material: Stainless Steel

Bent pipe- Flange automatic welding system

The system is mainly used for welding elbow to flange. It requests less labor intensity and skills than manual welding, but gets high quality.



Brief

The system sloves the issue of automatic welding for both inside and outside seams in welding elbow to flange with MAG welding procedure. In welding, the welding pool is in protection gas to insure quality and meet requirement of welding joints.



Features

Bent pipe- Flange automatic welding system Solved inside and outside two seams welding simultaneously, minimizingrequirements on labor intensity and skills;
Bent pipe- Flange automatic welding system Open headstock rotator design which is convenient for load/unload;
Bent pipe- Flange automatic welding system High efficiency, e.g φ155 pipe welding time less than 60s for two seams at the same time;
Bent pipe- Flange automatic welding system Unique welding process for two seams;
Bent pipe- Flange automatic welding system Patent design of open headstock rotator with AC servo motor for stable rotation and high a accurate control;
Bent pipe- Flange automatic welding system Suitable for variable OD bent pipe – flange inside and outside seams welding simultaneously.



Specification

Bent pipe- Flange automatic welding system Pipe diameter: OD Φ165~200mm;
Bent pipe- Flange automatic welding system Wall thickness range: 5~8mm;
Bent pipe- Flange automatic welding system Weight: ≤45kg;
Bent pipe- Flange automatic welding system Welding current: 60~500A;
Bent pipe- Flange automatic welding system Wire diameter: Φ1.2mm;
Bent pipe- Flange automatic welding system Function: pulse current, rotation, wire feeding, protection gas, oscillation;
Bent pipe- Flange automatic welding system Program memory: 50.


Bent pipe- Flange automatic welding systemBent pipe- Flange automatic welding systemBent pipe- Flange automatic welding system
