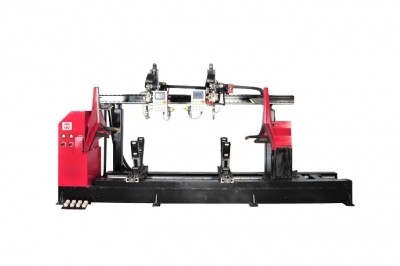

HWH Circumferential Seamer(φ>300mm)
The best circumferential seam welding system for small vessel
High precision, convenient clamping
Single torch or double torches for different welding process
Brief
The small-sized circumferential welding system is used for welding vessel diameter less than φ1000mm. It is composed by headstock, tailstock, hydraulic pump, beam, pneumatic bracket, welding trolley, slider, arc protection cover, and controller, etc. The work piece is clamped by adjustable chuck on the headstock; and it can be adjusted to coaxial with the main spindle by means of the ruler on the chuck. The tailstock clamps the work piece by hydraulic pump; When necessary, it can use pneumatic support in the middle of work piece.
Features
Modular design, allowing customizing the welding system according tocustomer requirement;
Suitable for barrel and hydro-cylinder circumferential seam welding;
According to requirement, choose TIG, MIG/MAG welding process, and choose single torch or double
torches;
Suitable for various materials, such as carbon steel, stainless steel, titanium alloy and aluminum alloy
etc;
Suitable for pneumatic loading material and hydraulic pushing fixture.
Specification
Item | Parameters |
Welding Diameter | φ300~φ1000mm |
Maximum Welding Length | 2500mm |
Rotation Speed | 0.05~1.0rpm |
Rotation Motor | Frequency conversion motor |
Speed Regulation | Stepless speed regulating |
Distance of Hydraulic Pump Movement | 500mm |
Support type | Pneumatic |
Distance of Slider Vertical Movement | 450mm |
Clutch Type | Manual |
Distance of Oscillation Slider Movement | 60mm |
