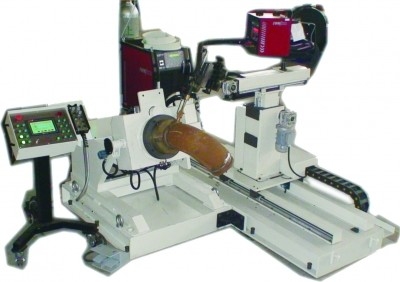

Pipe Station Automatic Welding System
Unigue pipe root pass welding procedure
Patent open headstock design

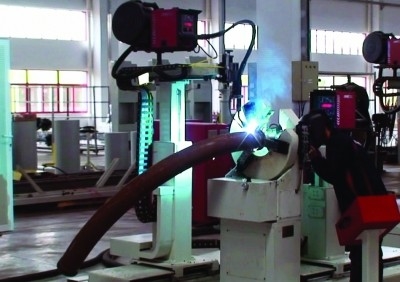

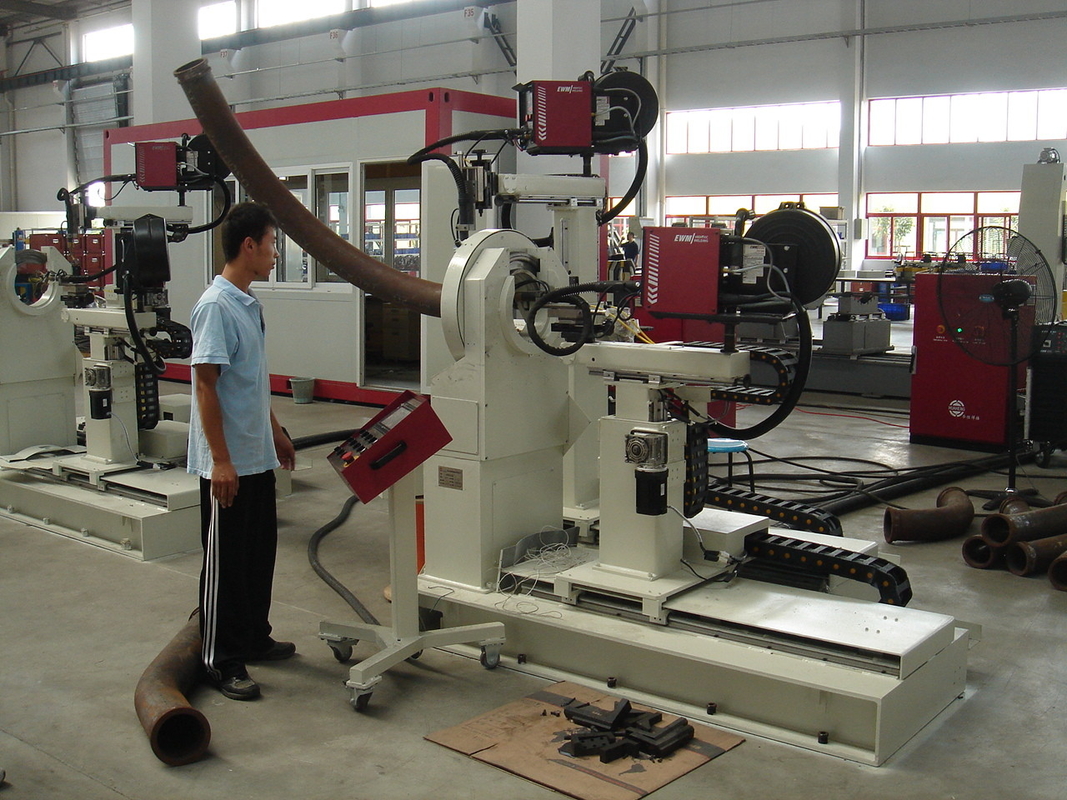

The pipe welding tool series system is used for welding pipe to pipe, pipe to flange, pipe to elbow, pipe to tee etc. It can realize the pipe automatic centering, automatic (manual) clamping, and stable rotation by means of patented headstock technology. It can be used for automatic processing of root pass, filling pass, and cap pass, in cooperation with arc voltage controller (AVC), monitor and so on.
Easy load and unload by open design;
Avoid axial jumping during the rotation;
Avoid radial jumping during the rotation
Motor-driven three-jaws clamping, automatic centering to minimized labor intensity;
AC servo motor driven, large speed adjustment, quick response, high accurate;
Gear/sprocket drive for high transmission efficiency, big load ability to adapt to poor working conditions.
|Rotation Speed (Servo control)||3.7r/min||4.3r/min||3.5r/min||2r/min||2.26r/min|
|Rotation Center Height||600mm||780mm||950mm||1190mm||1280mm|
|Clamp Method||motor-driven||motor-driven||motor-driven||servo motor driven||
