Detailed Product Description
Condition: New

Description
Auto-aligning, the plate can be aligned against the side roller automatically.
The plate is clamped in the tangent position accurately of top roller and lower roller to get the shortest flat end (excellent pre-bending)
One-time rolling. The whole round cylinder can be rolled in one time, including the pre-bending. Find right position for side roller, it can be aligned automatically, no need to turn round.
Feeding plate. The plate is clamped between top roller and lower roller in the middle to assure the consistency and ideal location.
Accessories. Aligning, pre-bending and rolling are centralized control. Quick pre-bending and no damage on the plate edge; there is aligning device on the side supports to remove possible misalignment in rolling. And the top support is mainly used to roll big diameter of cylinder, which can replace the over-head crane. The rolling efficiency can be increased 2 or 3 time higher by using these accessories.
Cone-shape cylinder. The geometric design is good for cone-shape cylinder rolling, the lower roller can lean to clamp the plate (big diameter of cone-shape cylinder), which can make the the plate in this side move quickly. "cone-rolling device" is installed on the tipping side, and touch with short side (small diameter of cone-shape diameter), move slowly according to the needed size. The side roller must lean properly to roll the cone-shape cylinder in right size.
For The standard configuration of MERTAL-brand hydraulic 4 rolls, there are electronic control system for clamping location of lower roller and slant moving of side roller, which is much more advanced than competitors'.
CNC application. Hydraulic 4 rolls is the most proper machine model for CNC program plate rolling machine; quick auto-aligning; reliable "start point" as mechanical point, most proper for CNC program. Hydraulic clamping roller to clamp the plate tightly all the time to make sure the stability, precision and location. One-time rolling: it can be finished by CNC program very simply in one time.

Improving and innovating
Achieve breakthrough improvement on the productivity through high-tech equipments.
The MERTAL-brand plate rolling machine absorbs all latest techniques of intra-industry to realize unimaginable high productivity for customers.
MERTAL-brand plate rolling machine production line is a perfect equipment for high productivity and auto-rolling. We design and offer all accessories to match up with auto rolling according to the customer's need, which will reduce the stopping time, rolling period and the operators but increase the production efficiency.
MERTAL-brand hydraulic 4 rolls is proper for rolling thick plate (up to 300mm) and high-productivity project
Technique reliability
Relying on modern technique method, combining the reliability with easy-operation to assure the rolling moving precision and high-quality products.
Following users apply to use the machine
1, first use of the user, because this is one of the most easy-to-operate machine
2, operator's lack of inspection requires high productivity,
3, increase profitability requires high accuracy,
4, improving quality want only one operator, reducing labor costs
5, due to the large size of the Board, production of high-or for security reasons require handling device, feeding plate form, side and upper feeding device
6, want to use CNC operations, reduce operational personnel action levels think factors.

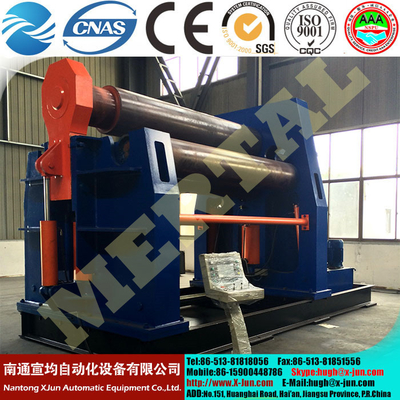

Hot! Hydraulic CNC Plate rolling machine/Italian imported machine,4 roller plate rolling machine

This integrally designed and built machine, enables reliable operation, convenient maintenance

and high accuracy for the users with its' digital screen which shows the displacement of the lower roller and side rollers. The overturn oil cylinder was designed to conduct overturn, reset of the overturn side frame.

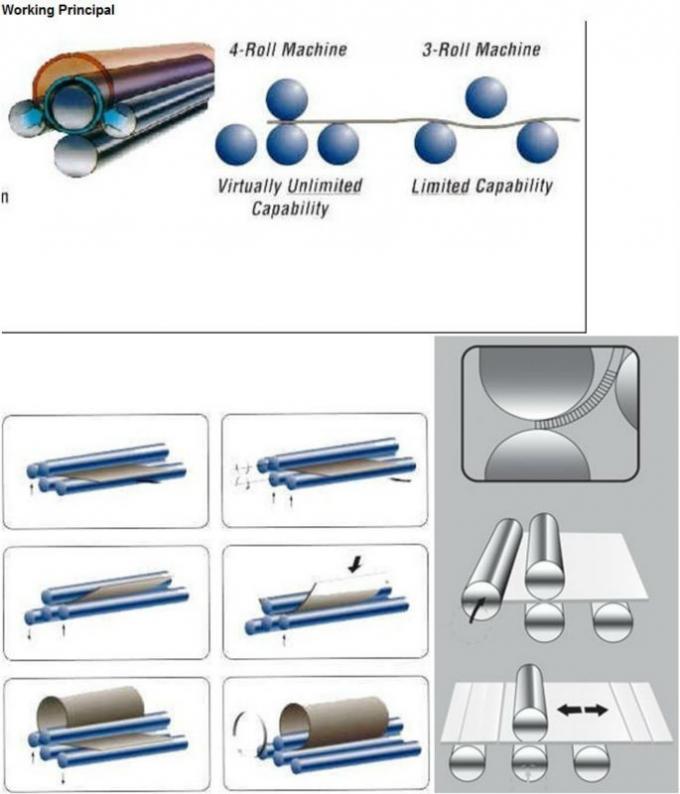

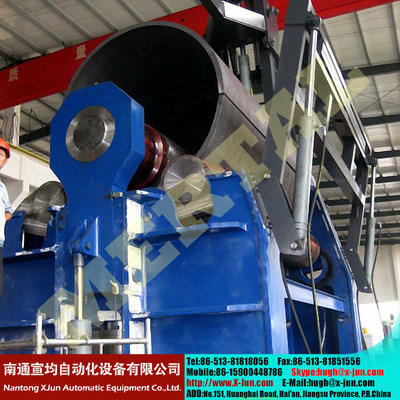

The lower roller and the upper roller are driving rollers. The position of the upper roller is fixed, while the lower roller performs vertical movement to clamp the plate. The friction force which is generated between the plate and the work rollers drives the plate moving forward. The side rollers driven by the hydraulic oil cylinders, perform arc movement to curve the plate. The amount of the displacement of the side rollers can be adjusted to achieve required arc shapes or round shapes. The side rollers rolling, driven by the friction force generated by the plate and the work rollers.

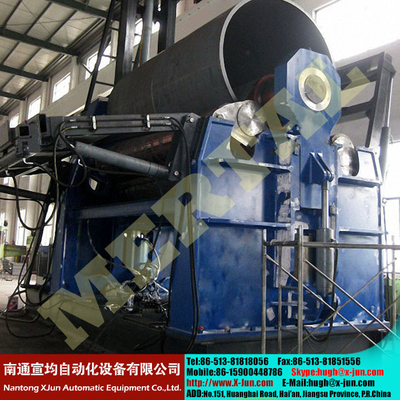

There is a downturn cylinder along the downturn machine frame. When the coil is finished, the cylinder is balanced, the downturn cylinder moves, the sheet can be unloaded. The downturn frame is restored by the downturn cylinder. So far it is called one working cycle.

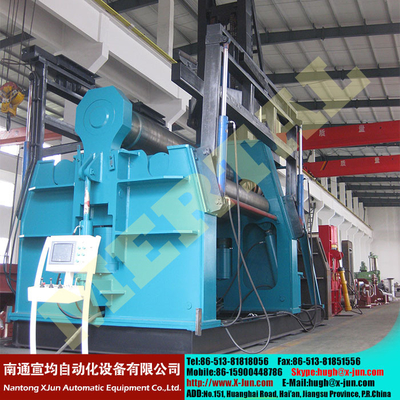

Hot! Hydraulic CNC Plate rolling machine/Italian imported machine,4 roller plate rolling machine


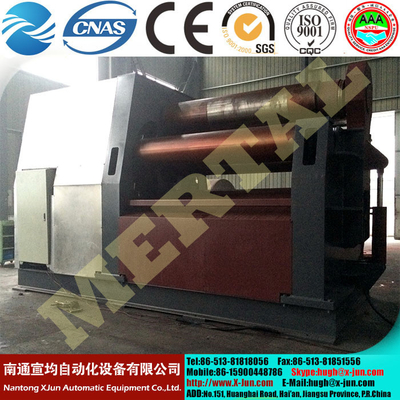

Hot! Hydraulic CNC Plate rolling machine/Italian imported machine,4 roller plate rolling machineHot! Hydraulic CNC Plate rolling machine/Italian imported machine,4 roller plate rolling machine

MCLW12HXNC Four roller plate rolling machine technical parameters
Model Max pre-bending thickness(mm) Max bending thickness(mm) Diameter of upper roller(mm) Max plate width(mm) Main motor power(kw)
MCLW12-3x1500 2 3 135 1500 2.2
MCLW12-5x1500 3 5 190 1500 4
MCLW12-10x2000 8 10 240 2000 11
MCLW12-10x2500 8 10 260 2500 15
MCLW12-12x2000 10 12 260 2000 15
MCLW12-15x2000 12 15 265 2000 18.5
MCLW12-15x2500 12 15 280 2500 22
MCLW12-20x2000 16 20 300 2000 30
MCLW12-20x2500 16 20 340 2500 30
MCLW12-25x2500 20 25 390 2500 30+7.5
MCLW12-25x3000 20 25 420 3000 37+7.5
MCLW12-30x2500 25 30 420 2500 37+7.5
MCLW12-30x3000 25 30 460 3000 45
MCLW12-35x2500 30 35 460 2500 45
MCLW12-35x3000 30 35 510 3000 55
MCLW12-35x3500 30 35 550 3500 55
MCLW12-40x2500 35 40 510 2500 55
MCLW12-40x3000 35 40 550 3000 55
MCLW12-40x3500 35 40 560 3500 55+7.5
MCLW12-50x2500 45 50 560 2500 55+7.5
MCLW12-50x3000 45 50 605 3000 55
MCLW12-50x3500 45 50 640 3500 75
MCLW12-60x3000 50 60 670 3000 108.5
MCLW12-60x3500 50 60 700 3500 75
MCLW12-70x3000 65 70 720 3000 90
MCLW12-70x3500 65 70 760 3500 90
MCLW12-80x3000 70 80 780 3000 90
MCLW12-80x3500 70 80 840 3500 55*2
MCLW12-80x4000 70 80 870 4000 55*2
MCLW12-90x3000 80 90 810 3000 75*2
MCLW12-90x3500 80 90 890 3500 75*2
MCLW12-90x4000 80 90 925 4000 75*2
MCLW12-100x3000 85 100 850 3000 45*4
MCLW12-100x3500 85 100 925 3500 45*4
MCLW12-100x4000 85 100 960 4000 45*4
MCLW12-120x3000 100 120 940 3000 55*4
MCLW12-120x3500 100 120 980 3500 55*4
MCLW12-120x4000 100 120 1020 4000 55*4
MCLW12-140x3000 115 140 1000 3000 75*4
MCLW12-160x3500 130 160 1220 3500 90*4
MCLW12-180x3000 150 180 1280 3500 55*8
MCLW12-200x4000 160 200 1500 4000 75*8
