Description of W12 4 roller rolling machine:

This equipment composed of work frame , upper roll device , main drive device, down roll device, side roll device, overturn device ,hydraulic system(parts) , electricity system(parts), and lubricate device.

Work frame:

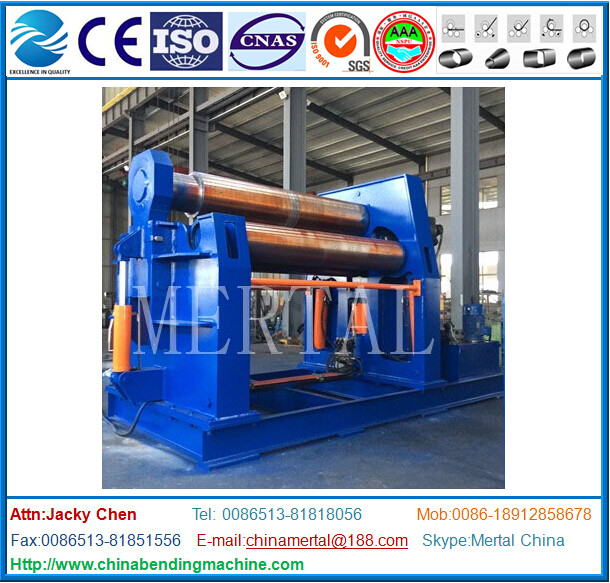

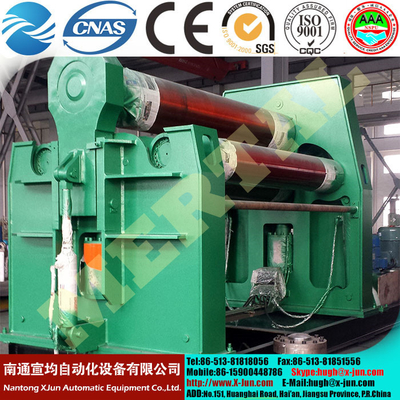

Heavy duty hydraulic CNC Plate rolling machine 4-roller plate rolling machine

Body from the base, a fixed side frame and the tip side of the rack, and each part is steel welded structure.Were fixed with bolts on both sides of the rack in the base and sides of the rack will be used to connect beams connected to rigidity good.Both sides of the rack up roller and side rollers with movement of rail, fixed on the side of the rack with roller bearing for half of the closed frame structure, has overturned overturned side rack shelf support devices. Coil force in the process of both sides of the rack by the bear from the base not only supports the weight of the machine to ensure the accuracy of the role of equipment, but also enables a torque between the drive and chassis balance, and will join into one machine. In the now traditional large-scale four-roller bending machine body and the main gear is separate from the base installation.



Upper roll device
The up roller gear drive from the main for turning, the ends of the SP-1 bearing support, drive-side through the flat key, off the main drive gear and connect the device to transfer torque, tip-side with the protection of Steel .
The material of the up roller is 42CrMo, heat hardening is HB220-300.

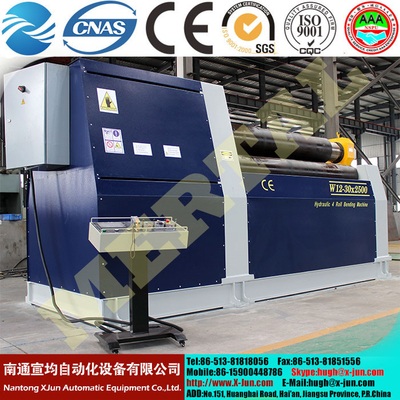

Heavy duty hydraulic CNC Plate rolling machine 4-roller plate rolling machine

main drive device:
By the Y2 motor, three speed reduction gear, transmission torque to the roller. In the high speed shaft of reducer with putting the power hydraulic brake.Power supply is 380V/50Hz.

3-4:Down roller device:
Down roller supports under the bearing, the bearing housings on both sides of the rack mounted inside the track, the bottom of the piston and cylinder connected. Bearing in the liquid under pressure can rise and fall along the rail, according to the size of the thrust rod, steel plate under the roller clamping force required by the hydraulic system pressure control valve be adjusted.Addition of the down lower rollers can roll adjustment, improve the accuracy of product under the same material heat treatment hardening is HB220-280.

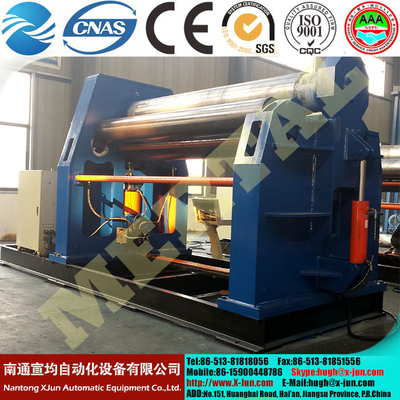

Heavy duty hydraulic CNC Plate rolling machine 4-roller plate rolling machine

3-5, Side roller device:
Side of the roller bearing in the radial bearing pedestal, bearing on both sides of the rack mounted inside the track, the bottom of the piston and oil cylinder connected. Bearing in the liquid under pressure, can be tilted up and down along the rail, the size of the piston rod of the thrust force according to the needs of steel plate by the hydraulic system pressure control valve be adjusted.The side roll quality alloy steel, heat treatment hardening is HB220-280.

Heavy duty hydraulic CNC Plate rolling machine 4-roller plate rolling machine

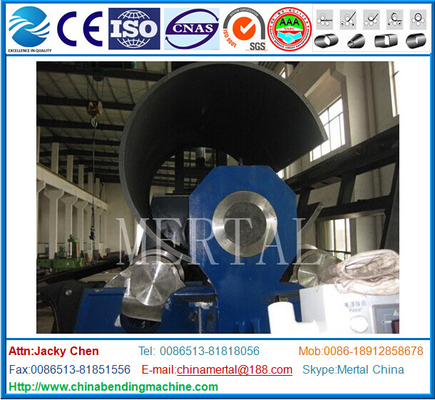

3-6:Overturn device:
Overturn device through the oil cylinder , hinges torn off and driving overturned on a roller bearing aircraft overturned in order to remove products.

Heavy duty hydraulic CNC Plate rolling machine 4-roller plate rolling machine

3-7:Hydraulic system(parts)
Hydraulic system consists of gear pump, valve, fluid connectors, hydraulic accessories.Superposition valve series hydraulic valves used, piping layout simple and easy to maintain debugging.
System consists of three circuit composed of overpressure protection and pressure control loops, synchronization loop, speed loop.
Loop through the main relief valve pressure regulator conditioning system working pressure. System working pressure 19.5Mpa.

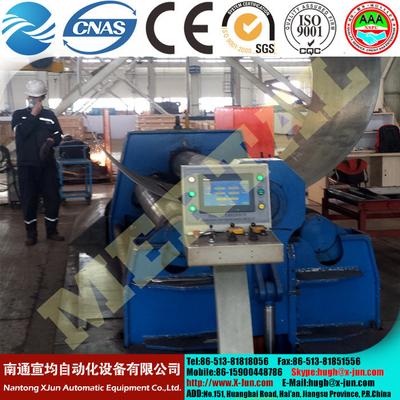

3-8:Electricity system(parts)
Electrical control system includes the electrical box, operation control panel, hand-held button.Main switch with short circuit protection and the main motor overload protection. Reversible motor contactor control by the exchange; control circuit is controlled by PLC programmable controller system, relay less reliable action and long life. Control cabinet with the completion of the process of rolling all products control buttons, lights, etc. to the operation of the machine control and status control.

Heavy duty hydraulic CNC Plate rolling machine 4-roller plate rolling machine
Following users apply to use the machine

first use of the user, because this is one of the most easy-to-operate machine

operators lack of inspection requires high productivity,

increase profitability requires high accuracy,

improving quality want only one operator, reducing labor costs

due to the large size of the Board, production of high-or for security reasons require handling device

want to use CNC operations, reduce operational personnel action levels think factor

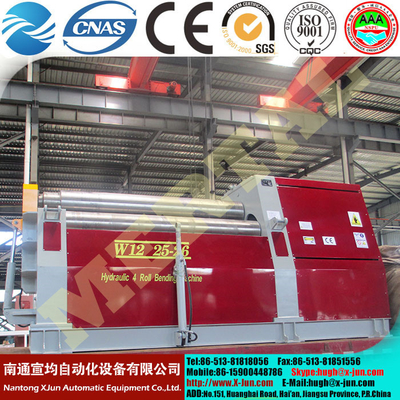

Heavy duty hydraulic CNC Plate rolling machine 4-roller plate rolling machine

Heavy duty hydraulic CNC Plate rolling machine 4-roller plate rolling machineHeavy duty hydraulic CNC Plate rolling machine 4-roller plate rolling machine



MCLW12HXNC Four roller plate rolling machine technical parameters
Model Max pre-bending thickness(mm) Max bending thickness(mm) Diameter of upper roller(mm) Max plate width(mm) Main motor power(kw)
MCLW12-3x1500 2 3 135 1500 2.2
MCLW12-5x1500 3 5 190 1500 4
MCLW12-10x2000 8 10 240 2000 11
MCLW12-10x2500 8 10 260 2500 15
MCLW12-12x2000 10 12 260 2000 15
MCLW12-15x2000 12 15 265 2000 18.5
MCLW12-15x2500 12 15 280 2500 22
MCLW12-20x2000 16 20 300 2000 30
MCLW12-20x2500 16 20 340 2500 30
MCLW12-25x2500 20 25 390 2500 30+7.5
MCLW12-25x3000 20 25 420 3000 37+7.5
MCLW12-30x2500 25 30 420 2500 37+7.5
MCLW12-30x3000 25 30 460 3000 45
MCLW12-35x2500 30 35 460 2500 45
MCLW12-35x3000 30 35 510 3000 55
MCLW12-35x3500 30 35 550 3500 55
MCLW12-40x2500 35 40 510 2500 55
MCLW12-40x3000 35 40 550 3000 55
MCLW12-40x3500 35 40 560 3500 55+7.5
MCLW12-50x2500 45 50 560 2500 55+7.5
MCLW12-50x3000 45 50 605 3000 55
MCLW12-50x3500 45 50 640 3500 75
MCLW12-60x3000 50 60 670 3000 108.5
MCLW12-60x3500 50 60 700 3500 75
MCLW12-70x3000 65 70 720 3000 90
MCLW12-70x3500 65 70 760 3500 90
MCLW12-80x3000 70 80 780 3000 90
MCLW12-80x3500 70 80 840 3500 55*2
MCLW12-80x4000 70 80 870 4000 55*2
MCLW12-90x3000 80 90 810 3000 75*2
MCLW12-90x3500 80 90 890 3500 75*2
MCLW12-90x4000 80 90 925 4000 75*2
MCLW12-100x3000 85 100 850 3000 45*4
MCLW12-100x3500 85 100 925 3500 45*4
MCLW12-100x4000 85 100 960 4000 45*4
MCLW12-120x3000 100 120 940 3000 55*4
MCLW12-120x3500 100 120 980 3500 55*4
MCLW12-120x4000 100 120 1020 4000 55*4
MCLW12-140x3000 115 140 1000 3000 75*4
MCLW12-160x3500 130 160 1220 3500 90*4
MCLW12-180x3000 150 180 1280 3500 55*8
MCLW12-200x4000 160 200 1500 4000 75*8
