Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Brand: | Mertal |
|---|---|---|---|
| Color: | Red Or Blue Or Customized | Forging Method: | Bending Or Cutting |
| Material: | Carbon Steel Or Stainless Steel |
Detailed Product Description
| Max Thickness: | 32Mm | ||
| Warranty: | One Year, Provide Technical Service All Life Time | ||
| Voltage: | 380V/3P/50HZ (aslo According To Your Local Voltage |
NC Control Quality Guillotine Shearing Machine CE Standard Plate Sheet Cut
|
Main Features: |
| 1.Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment. |
| 2. Accurl engineers utilize parametric 3D SolidWorks using FEM & DOE analysis as well as static and mechanism analysis. |
| 3. Accurl Hydraulic Shearing Machine is a Swing Beam Action machine which is produced in a variety of cutting lengths and capacity options. |
| 3. Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch-Rexroth, Germany, |
| 4. Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode. |
|
5. Hydraulic drive, return of knife beam is smooth and prompt by nitrogen cylinder. |
| 6. CE conformity including Tiltable Fornt Finger Guard and Optical Rear Safety Guard, |
|
7. Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety. |
Standard Equipment:
1. Rapid and precise blade clearance adjustment by single handle on the side frame
2. Multi Edge Blades for cutting Aluminium, Mild Steel and Stainless Steel
3. Cutting Line Illumination and wire for shadow line cutting
4. Counter of Strokes, Cutting Length Adjustment
5. Hydraulic and Electrical overload protection
6. Squaring Arm and Front Support Arms
7. NC control
8. Germany Bosch-Rexroth Hydraulic
9. Telemecanique/SchneiderElectrics
10. Hydraulic and Electrical overload protection
11. Delta inverter with ball screw and polished rod with 0,05 mm accuracy.
12. Side guard is standard meeting CE regulations.
Main Specification:
|
model |
Max thickness mm |
Max width mm |
Shearing angle
|
Number of stroke |
Backgauge range mm |
Motor power KW |
weight |
Overall dimension |
|
QC11Y-4x2000 |
4 |
2000 |
30′-1°30′ |
14 |
600 |
4 |
3000 |
260x200x160 |
|
QC11Y-4x2500 |
4 |
2500 |
30′-1°30′ |
14 |
600 |
4 |
3800 |
313x203x160 |
|
QC11Y-4x3200 |
4 |
3200 |
30′-1°30′ |
14 |
600 |
5.5 |
4500 |
384x218x160 |
|
QC11Y-6x2500 |
6 |
2500 |
30′-1°30′ |
14 |
800 |
7.5 |
5300 |
313x232x160 |
|
QC11Y-6x3200 |
6 |
3200 |
30′-1°30′ |
12 |
800 |
7.5 |
6500 |
384x232x162 |
|

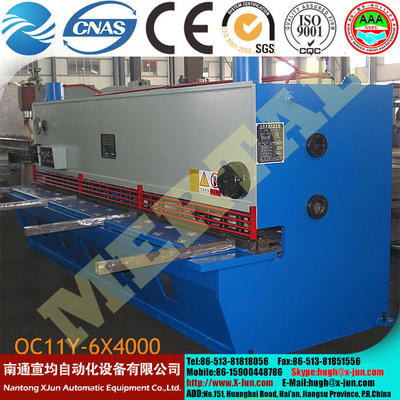

QC11Y-6x4000 |
6 |
4000 |
30′-1°30′ |
10 |
800 |
7.5 |
7500 |
463x250x170 |
|
QC11Y-6x6000 |
6 |
6000 |
30′-1°30′ |
8 |
800 |
11 |
15200 |
665x250x225 |
|
QC11Y-8x2500 |
8 |
2500 |
30′-1°30′ |
14 |
800 |
11 |
6000 |
314x235x162 |
|
QC11Y-8x3200 |
8 |
3200 |
30′-1°30′ |
12 |
800 |
11 |
6800 |
385x235x162 |
|
QC11Y-8x4000 |
8 |
4000 |
30′-1°30′ |
10 |
800 |
15 |
8500 |
463x250x170 |
|
QC11Y-8x6000 |
8 |
6000 |
30′-2° |
7 |
800 |
15 |
19800 |
665x285x170 |
|
QC11Y-12x2500 |
12 |
2500 |
30′-2°30′ |
10 |
800 |
15 |
8700 |
324x305x210 |
|
QC11Y-12x3200 |
12 |
3200 |
30′-2°30′ |
8 |
800 |
15 |
9800 |
395x305x210 |
|
QC11Y-12x4000 |
12 |
4000 |
30′-2°30′ |
6 |
800 |
15 |
13400 |
475x321x220 |
|
QC11Y-12x6000 |
12 |
6000 |
30′-2°30′ |
4 |
800 |
18.5 |
29000 |
675x343x230 |
|
QC11Y-16x2500 |
16 |
2500 |
30′-2°30′ |
8 |
800/1000 |
15 |
9000 |
341x323x223 |
|
QC11Y-16x3200 |
16 |
3200 |
30′-2°30′ |
7 |
800/1000 |
15 |
11000 |
412x323x223 |
|
QC11Y-16x4000 |
16 |
4000 |
30′-2°30′ |
6 |
800/1000 |
15 |
15000 |
492x333x270 |
|
QC11Y-20x2500 |
20 |
2500 |
30′-3° |
6 |
800/1000 |
22 |
11000 |
342x333x270 |
|
QC11Y-20x3200 |
20 |
3200 |
30′-3° |
5 |
800/1000 |
30 |
18000 |
418x333x270 |
|
QC11Y-20x4000 |
20 |
4000 |
30′-3° |
4 |
800/1000 |
30 |
21000 |
498x348x283 |
|
QC11Y-25x2500 |
25 |
2500 |
30′-3°30′ |
5 |
800/1000 |
30 |
15300 |
348x343x270 |
|
QC11Y-25x3200 |
25 |
3200 |
30′-3°30′ |
5 |
800/1000 |
30 |
21000 |
418x343x270 |
|
QC11Y-25x4000 |
25 |
4000 |
30′-3°30′ |
2 |
800/1000 |
30 |
26000 |
486x441x315 |
|
QC11Y-30x2500 |
30 |
2500 |
1°-3°30′ |
4 |
800/1000 |
30 |
17000 |
347x207x277 |
|
QC11Y-30x3200 |
30 |
3200 |
1°-3°30′ |
3 |
800/1000 |
37 |
23000 |
420x230x320 |
