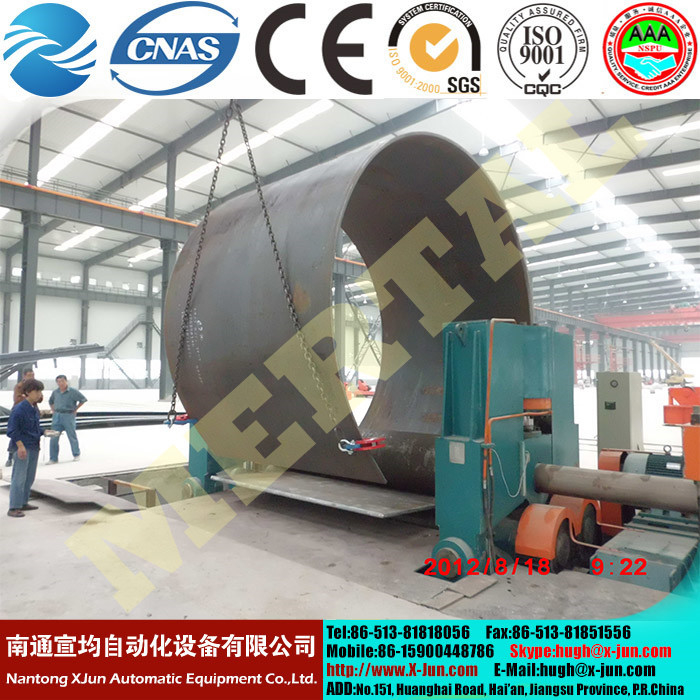

It is mainly used to rolling of ship hull, arc plate and slot type bulkhead. According to the customer's requirements, can be designed into symmetric and asymmetric type three roller plate bending machine, roll on the upper part is equipped with rigid girder, lower on the back and forward between roller and supporting roller have multiple sets of roller, to improve the rigidity of the roll up and down, all three roll drive.
A) on the symmetric mode: work roll can be done on the vertical lifting movement, under the two work roll position relatively unchanged.
B) the overall level of the lower roll mode: the work roll on vertical lifting movement, under the direction of the overall level of the work roll translational motion.
C) under the roller respectively levels mode: work roll on vertical lifting movement, work roll under horizontal translational motion, respectively.
D) on roller universal: work roll in vertical lifting movement, and translational motion in a horizontal direction, under the two work roll position relatively unchanged.
|MCLW11C Three roller plate rolling machine for shipping technical parameters|
|Model||Max bending thickness(mm)||Max plate width(mm)||Yielding Linit(Mpa)||Main motor power(kw)|
