1. High-precision end pre-bending
2.NC control and improve production efficiency
3. products superior accuracy
4. The overall structure, the foundation is simple, easy to move
5. Job security
6. Rich bending shape
1), rolling barrel straight and high, set on a drum roll, with roller adjustment, from sheets to heavy plate rolling this range can be a high degree of linear products, to ensure that the next process is carried out smoothly welding to ensure the quality of welding.
2) using the rear bending process, eliminate curved front post horn is produced, products roundness.
3), the material ends direct pressurizing the pre-bend very easily and effectively control the shape of the remaining straight edge.
★ The device is equipped with a lubricating device. Lubrication system for each movable joint member has a centralized lubrication system lubrication system is reliable and can work at ambient temperature (45 ° or less), high humidity (95%).
★ integrated racks, base made of high quality steel Q235B welded components, have sufficient strength and rigidity.
★ work rolls using two approaches: first quenching strength of the work rolls HB260-300; then the work rolls quenching hardness HRC50-55, the work roll is detected using two standard testing, the work roll is 42CrMo forging blank.
★ equipped with electronic synchronization system when moving up and down on a roll, synchronous balance compared, and no end of work balance is not prone to the wrong side, easy operation, high volume manufactures precision.
★ equipment control system uses the remote service monitoring system. The user can use equipment and production facilities and services twenty-four hours tracking, promptly address and resolve equipment problems to ensure uninterrupted device is working properly. (Requires optional)

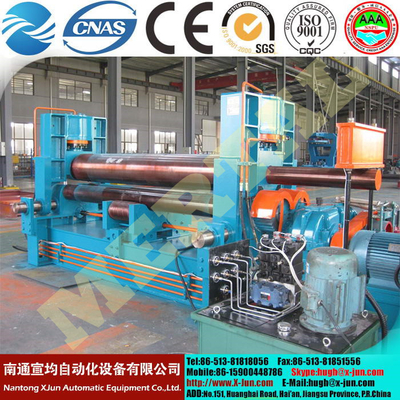

|MCLW11S upper roller universal plate rolling machine technical parameters|
|Model||Max Pre-bending thickness(mm)||Max bending thickness(mm)||Diameter of the upper roller(mm)||Max plate width(mm)||Main motor power(kw)|
